5 Quick CATIA Macro Tips

Tip 1: Save macros in documents

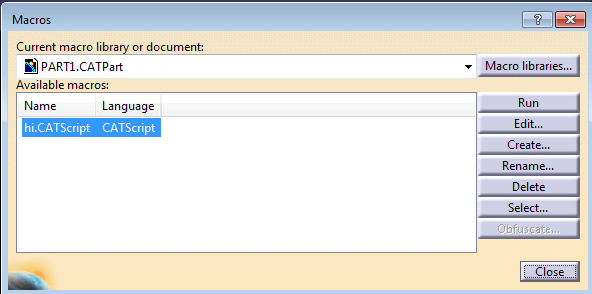

When you create a macro library to execute your macros (a process I demonstrate how to do in one of my bonus videos), you can also save your macros inside of CATIA documents, such as CATParts and CATProducts. Go to current macro library or document and select your CATPart or Product, then Create a new macro. Save the part and then macro will be saved with it.

Tip 2: Send Email from CATIA

Did you know you can send emails directly from CATIA? Here’s an example how:

CATMain()
Dim Email As Mail

Set Email=CATIA.CreateMail

Email.SetContent “Hi” & Chr(10) & “This is awesome”

Email.SetOriginator “Emmett Ross”

Email.SetSubject “CATIA Macros and Automation”

Dim Receiver As Recipients

‘options are catRecipientBlindCopy, catRecipientCopy, catRecipientTo

Set Receiver=Email.GetRecipients(catRecipientTo)

Receiver.Add “---@---.com”

Email.GetAttachments.Add “C:\Temp\myName.txt”, “C:\Temp\tmp”

‘catDisplayClientUI, catNoUI

Email.Send catNoUI

End Sub

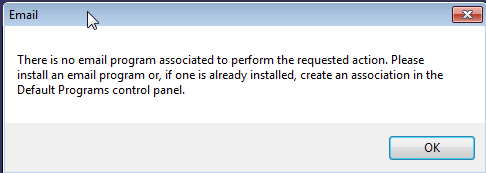

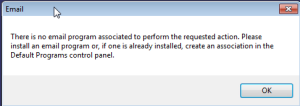

Please note, in order for this to work an email program needs to be associated, otherwise you get the error shown below:

Tip 3: Object up-to-date

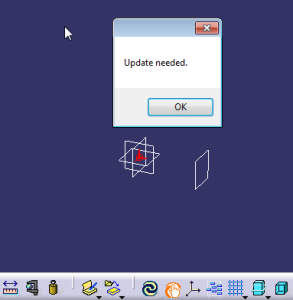

You can quickly check whether an object needs to be updated:

1
2
3
4
5
6
7
8
9
10
11
12
13

Dim myPart As Part

Set myPart=CATIA.ActiveDocument.Part

If MyPart.IsUpToDate(MyPart) Then

Msgbox (“No update needed.”)

Else

Msgbox(“Update needed.”)

End If

Tip 4: Object deactivated check

Similarly, you can check whether an object is deactivated:

1
2
3
4
5

If myPart.IsInactive(myObject) Then

Msgbox(“Pad.2 is deactivated.”)

End If

 Tip 5: Launch CATIA Help file from a macro

If you get stuck or you think your end users will have problems you can launch the CATIA Help documentation from a macro. Before running the macro ensure you’ve set  the CATIAPATH in the Tools>Options area.

1
2
3
4
5

CATMain()

CATIA.Help “CATIAPath”

End Sub

I hope you’ve enjoyed these quick  CATIA macro tips! What are your quick tips?
